Orbittread GlobalORBITTREADGlobal Tire Export
CROSSMAXX tire manufacturing
CHINESE TIRE BRAND

CROSSMAXX

Cross the limit · Move forward bravely

CROSSMAXX combines automated manufacturing, advanced tire production equipment and rigorous production processes to deliver passenger car, ultra-high-performance, SUV, all-terrain, commercial van and winter tires for international markets.

Request a Quote
Brand Introduction

Intelligent Manufacturing for International Supply

CROSSMAXX is a Chinese tire brand built around intelligent manufacturing and automated production. Its manufacturing base combines advanced equipment with production monitoring to maintain consistent quality across a broad product portfolio supplied internationally through Orbittread.

Intelligent Manufacturing

Automated and intelligent manufacturing and monitoring devices are used across the production line.

Automated Production

Fully-automated workshops cover sorting, calendering, forming, vulcanization and inspection stages.

Advanced Equipment

Production lines from Germany, Italy, the Netherlands, the U.S.A. and Japan support the manufacturing process.

Production Monitoring

Intelligent monitoring devices are used throughout production to support quality-oriented manufacturing.

Quality-Oriented Manufacturing

Rigorous production processes are applied across every stage, from material preparation to final inspection.

Broad Product Coverage

The portfolio spans HP, UHP, all-terrain, SUV, commercial van and winter tire applications.

International B2B Supply

CROSSMAXX products are supplied for international wholesale and distribution through Orbittread.

Manufacturing

Core Equipment & Manufacturing Lines

Production equipment used across the CROSSMAXX manufacturing base, as presented in the brand brochure:

PCR production line using automated and intelligent manufacturing and monitoring devices (Max capacity: 250 Kg)

Germany

Germany FISCHER small-angle belt-cutting machine

Multi-station fiber-cutting machine

Italy

Italy Aikei steel fiber dual-purpose calender

Fully-automated and three-dimensional sorting workshop

Multi-station calendering spindle room

Straight-cut production line

Netherlands

Netherlands VMI ESSIUM one-time forming machine

Germany

Germany Trestor extruder production line

Vulcanized by hydraulic vulcanizer and active mold

U.S.A.

U.S.A. BARTEL 6-station wire-winding production line

Japan

Japanese Kobelco fully-automated moving-detection production line

Airtight lamination production line

Product Portfolio

Six Product Categories, One Brand

CROSSMAXX organizes its product range into six categories covering passenger car, performance, SUV, all-terrain, commercial van and winter applications.

ECO201 tireHP · High Performance

ECO201

Passenger car / economy sedans

A high-performance passenger car line in mainstream 13–16 inch sizes, built for daily road use.

Request a Quote

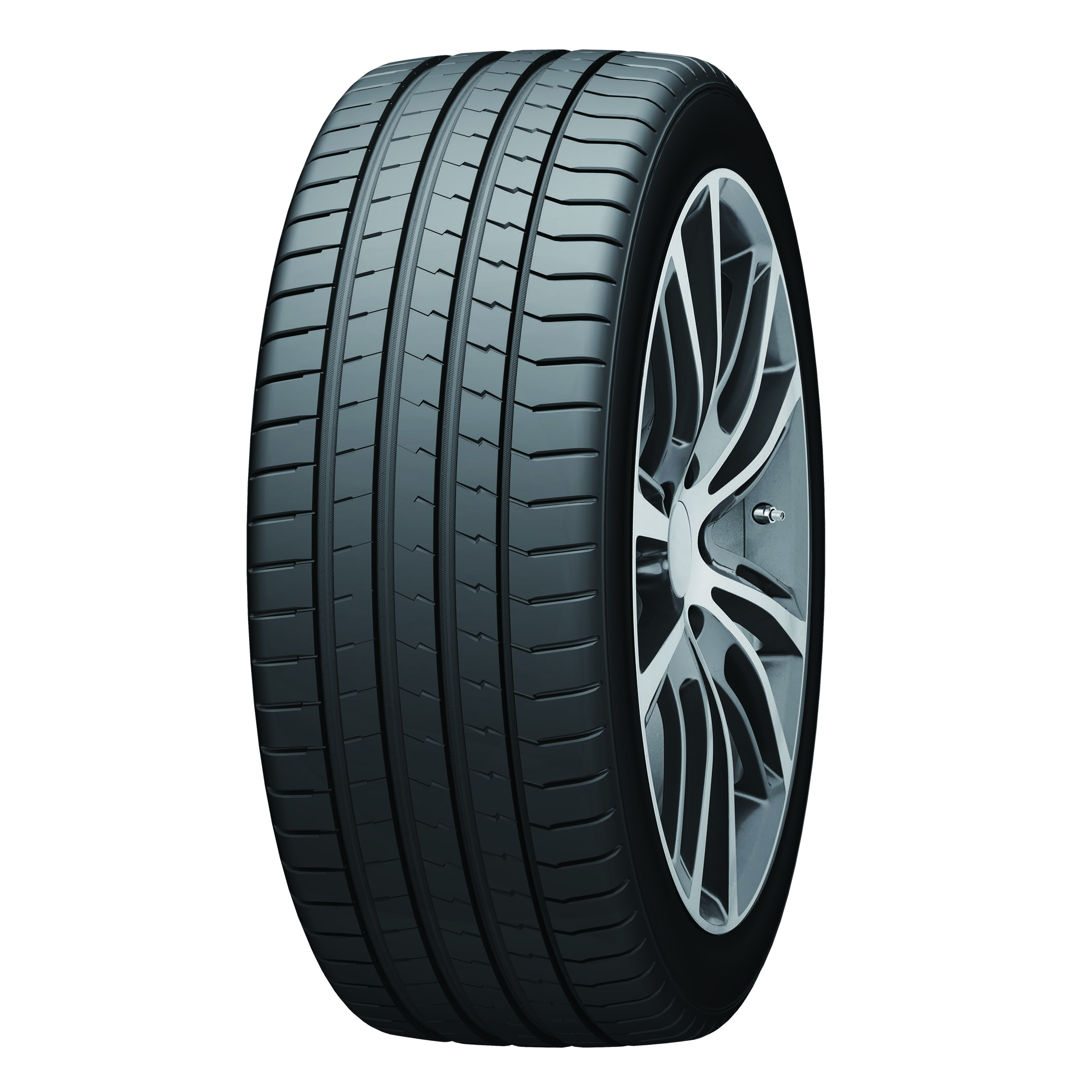

ECOSPEED tireUHP · Ultra-High Performance

ECOSPEED

Sports and performance vehicles

An ultra-high-performance line spanning 16–22 inch low-profile sizes for higher-speed applications.

Request a Quote
ALLROAD T/A, GRIPHUNTER tireAT · All-Terrain

ALLROAD T/A · GRIPHUNTER

SUVs, pickups and 4×4 vehicles

All-terrain light-truck sizes designed for mixed road and off-road conditions.

Request a Quote

Specifications available on request — Request a Quote

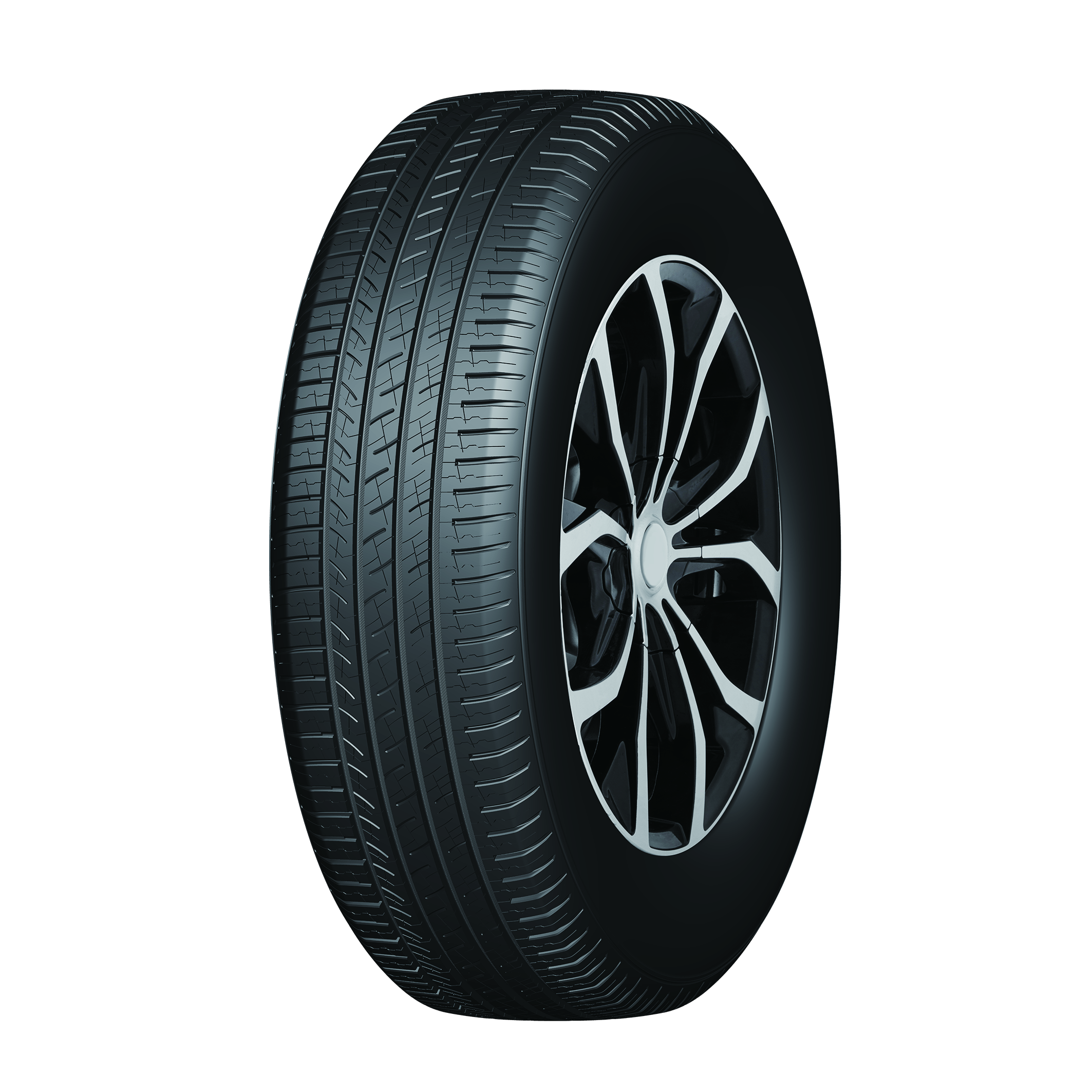

ECOJEEPER tireSUV · SUV · Highway Terrain

ECOJEEPER

SUV highway terrain

A highway-terrain SUV line in 16–19 inch sizes for daily road and highway driving.

Request a Quote
CROSSVAN, GAZFIT tireVAN · Business Car / Commercial

CROSSVAN · GAZFIT

Vans and light commercial vehicles

Commercial van sizes in 13–16 inch C-rated constructions for load-carrying applications.

Request a Quote

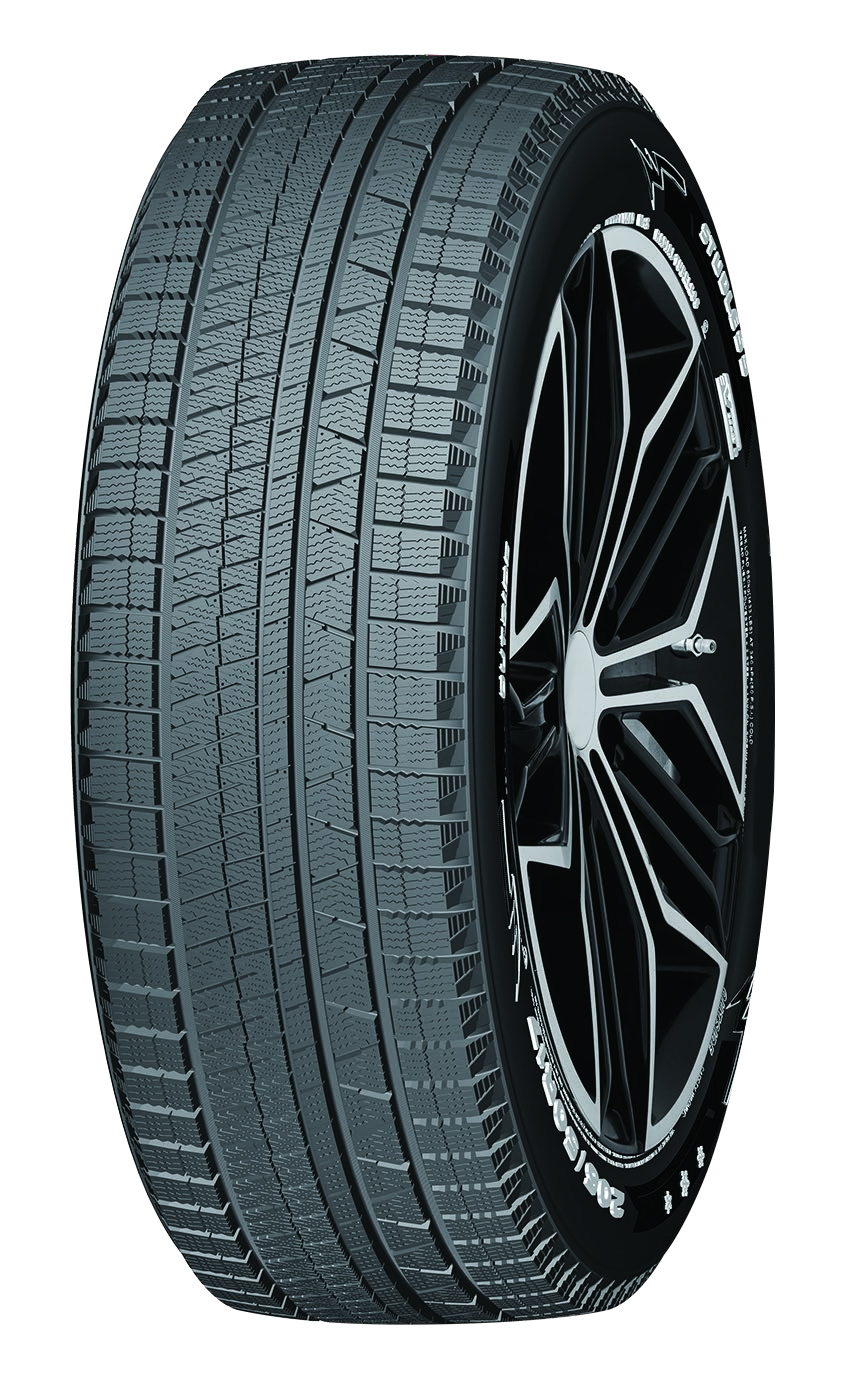

SNOWMAX tireSNOW · Winter Series

SNOWMAX

Winter driving conditions

A winter line from 13 to 21 inches for snow and cold-weather conditions.

Request a Quote
Technical Specifications

Sizes, Loads & Technical Data

Select a series and filter by size, rim diameter, speed rating or load index. Data is sourced from the CROSSMAXX brochure.

50 sizes shown

SizeLI/SISection widthOverall diameterStd. rimMax Load (kg)Max Load (Lbs)Max Press (Kpa/Psi)UTQG
155/65R1373T1575324.50B365805300/44420/A/A
155/70R1375T1575484.50B387853300/44420/A/A
155/80R1379T1575784.50B437963300/44420/A/A
165/65R1377T1705445.00B412908300/44420/A/A
165/70R1379T1705625.00B437963300/44420/A/A
175/60R1377T1775405.00B412908300/44420/A/A
175/70R1382T1775765.00B4751047300/44420/A/A
185/70R1386T1895905.50B5301168300/44420/A/A
155/65R1475T1575584J387853300/44420/A/A
165/60R1475T1705545J387853300/44420/A/A
165/65R1479T1705705J437963300/44420/A/A
165/70R1481T1705885J4621019300/44420/A/A
175/60R1479H1775665J437963300/44420/A/A
175/65R1486T XL1775845J5301168340/50420/A/A
175/70R1484T1776025J5001102300/44420/A/A
185/60R1482H1895785.5J4751047300/44420/A/A
185/65R1486H1895965.5J5301168300/44420/A/A
185/70R1488T1896165.5J5651246300/44420/A/A
195/60R1486H2015906J5301168300/44420/A/A
195/70R1491T2016306J6151356300/44420/A/A
195/75R1492H1966485.5J6301389300/44420/A/A
205/70R1495T2096446J6801499300/44420/A/A
165/65R1581H1705955J4621019300/44420/A/A
175/60R1581H1775915J4621019300/44420/A/A
175/65R1584H1776095J5001102300/44420/A/A
185/55R1582V1945856J4751047300/44420/A/A
185/60R1584H1896035.5J5001102300/44420/A/A
185/65R1588H1896215.5J5601235300/44420/A/A
195/50R1582V2015776J4751074300/44420/A/A
195/55R1585V2015956J5151135300/44420/A/A
195/60R1588H2016156J5601235300/44420/A/A
195/65R1591H2016356J6151356300/44420/A/A
205/60R1591H2096276J6151356300/44420/A/A
205/65R1594H2096476J6701477300/44420/A/A
205/70R1596T2096696J7101565300/44420/A/A
215/65R1596H2216616.5J7101565300/44420/A/A
175/55R1680V1825985.5J450992300/44420/A/A
175/60R1682H1776165J4751047300/44420/A/A
185/55R1683V1946106J4871074300/44420/A/A
195/50R1684V2016026J5001102300/44420/A/A
195/55R1687V2016206J5451201300/44420/A/A
195/60R1689H2016406J5801279300/44420/A/A
205/55R1691V2146326.5J6151356300/44420/A/A
205/60R1692H2096526J6301389300/44420/A/A
205/65R1695H2096726J6901521300/44420/A/A
215/55R1693V2266427J6501433300/44420/A/A
215/60R1695H2216646.5J6901521300/44420/A/A
215/65R1698H2216616.5J7501653300/44420/A/A
225/55R1695V2336547J6901521300/44420/A/A
225/60R1698H2286766.5J7501653300/44420/A/A

Specifications available on request

No technical specification table has been supplied for GRIPHUNTER at this time.

Request a Quote
Recognition

Certifications & Honors

Certificates and honors presented in the CROSSMAXX brochure:

OGL Certificate

Certificate of Honor

Outstanding Unit

突出单位

Caring Enterprise

爱心企业

Excellent Organization Award

优秀组织奖

Vice Chairman Unit

副理事长单位

Provincial Key Project

省级重点项目

Contribution & Progress Unit

贡献进步单位

Wholesale Supply

Source CROSSMAXX Through Orbittread

Tell us the series and sizes you need — the Orbittread export desk will come back with commercial terms and lead times.

Request a Quote Browse the Catalog
